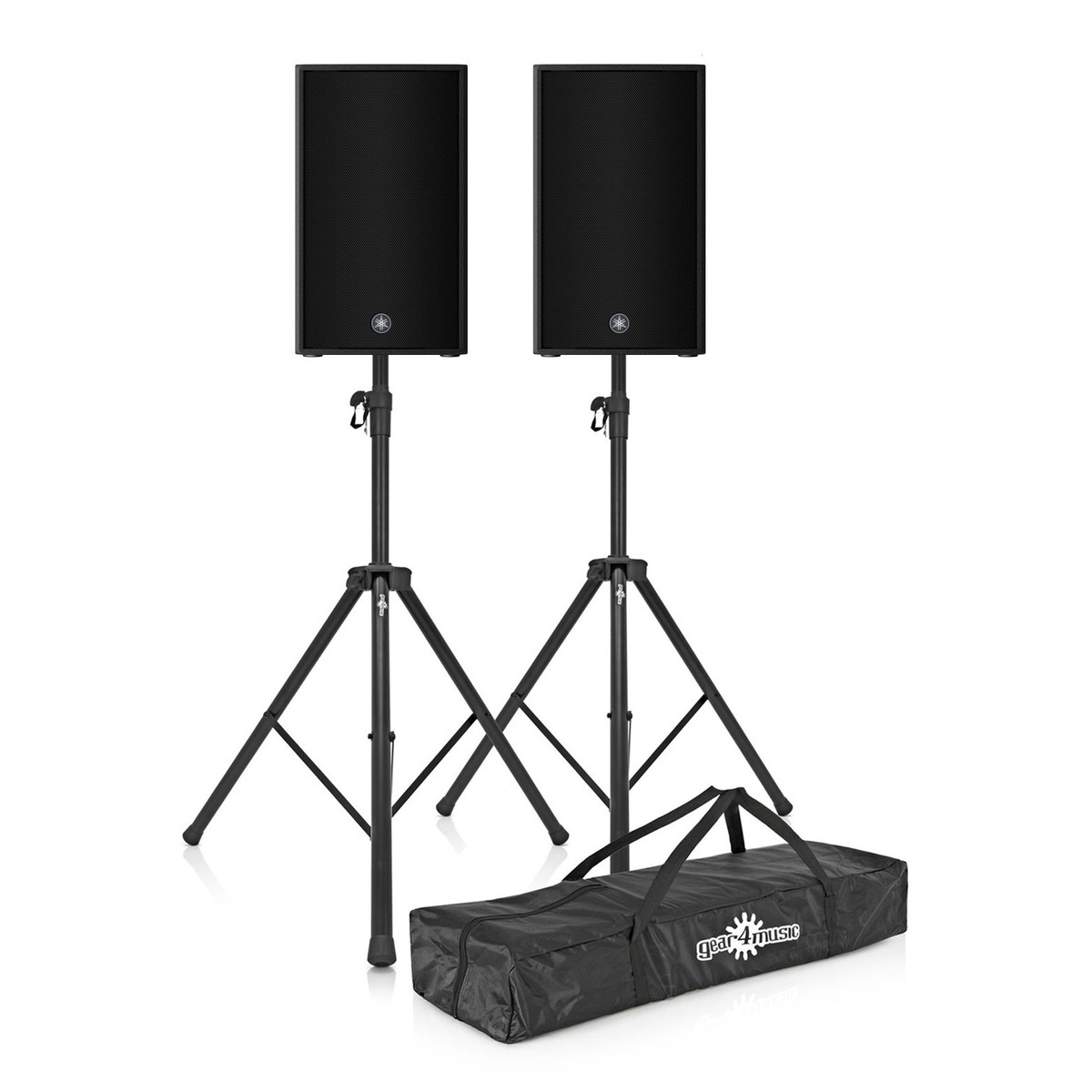

The Yamaha DZR series is the latest flagship range of loudspeakers from Yamaha. The active speaker is features a 2-way bass-reflex design with a 15'' low-frequency driver and a 2'' high-frequency driver. Yamaha DZR series active speakers are powered via premium-quality class-D amplifiers which provide up to 2000 watts of peak power. The LF transducer features a 3'' voice coils, cast aluminium frames and a lightweight neodymium magnet, resulting in a tightly controlled sound and in distortion-free performance. The HF transducer utilises a 2'' voice coil and a 1'' throat compression driver with a titanium diaphragm for sparkling high-end performance.
One of the most unique features of the DZR loudspeaker range is the integrated 96kHz DSP processors, helping to provide the high-power output the speaker delivers. The result is high-definition audio performance with super-low latency. The FIR-X Advanced Tuning technology uses linear phase FIR filters for the crossover network. The FIR filters allow you to achieve a smooth frequency response, resulting in exceptional clarity and sound imaging without phase distortion. EQ filtering capabilities are also included for fine-tuning adjustments, with best-in-class SPL without signal degradation.
Another innovative feature of the DZR speaker is the built-in D-CONTOUR multi-band compressor, ensuring a consistent and clear sound at any volume. The D-CONTOUR compressor works by measuring the output of the frequency bands, then applying the optimum EQ adjustment settings, ensuring clear and clean sound even at high output levels. D-CONTOUR provides you with two settings: FOH/MAIN or MONITOR mode, allowing detailed tuning of your PA system. The FOH/MAIN mode helps to raise lower frequencies and compensates for low-end that can be missing when speakers are used on a monitor stand or suspended. The MONTIOR mode is designed for floor monitoring applications, optimising your frequency response to match various settings.
