Full Description

Raw power

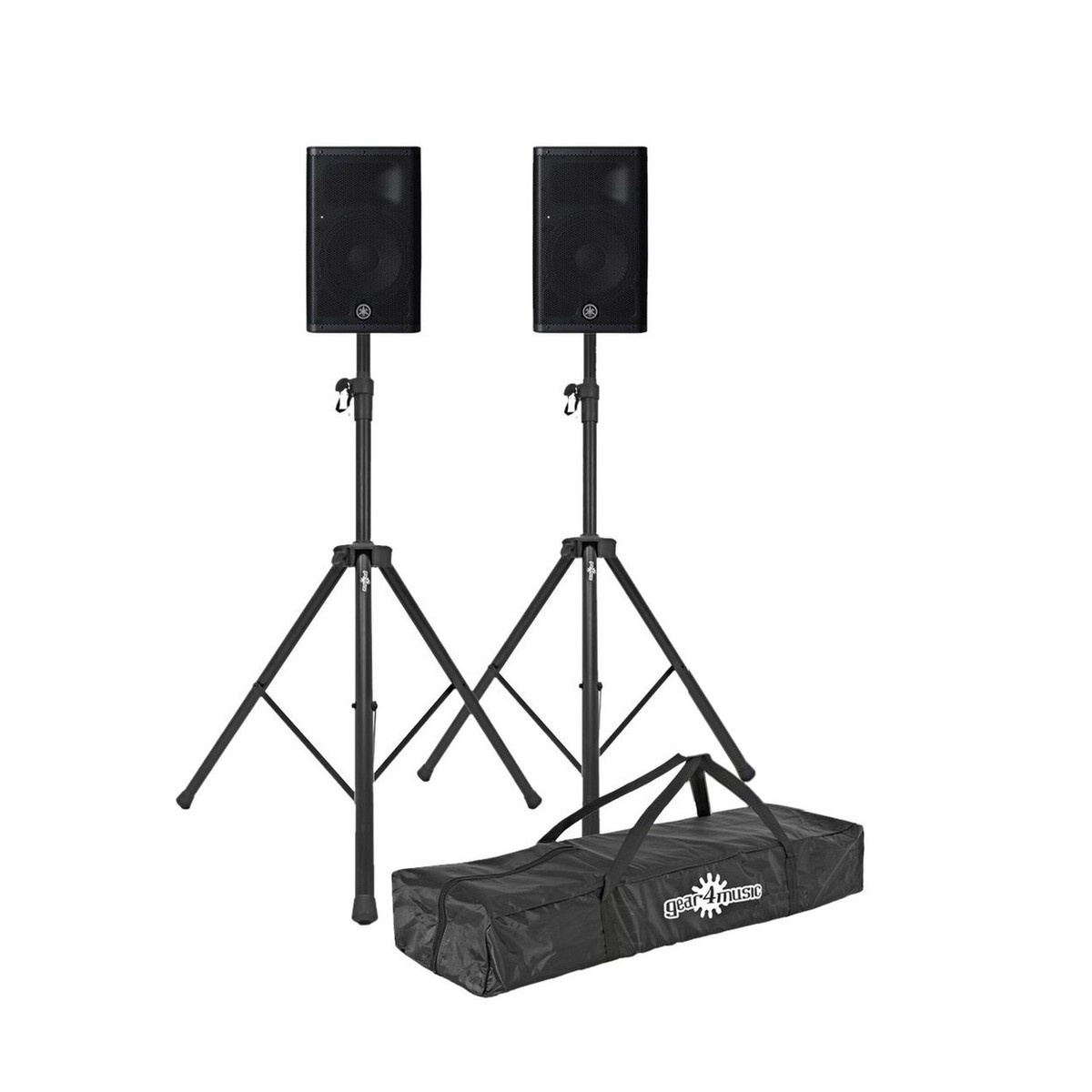

With a 1100-watt Class-D amplified design, the Yamaha DXR15mkII 15'' Active PA Speaker is powerful enough for any live environment. An intelligent multi-band compressor calculates level-based EQ adjustments. Ensuring consistent clarity. And with the ability to handle obscene sound pressure levels, you can be confident that the DXR15mkII won't be bested.

Fine-tuned

The DXR15mkII is clever enough to give you the best sound possible. Yamaha's innovative FIR-X Tuning intelligently manages frequencies. Combatting phase cancellation, ensuring clarity, and with exceptionally smooth crossover. Meaning you'll always sound exceptional.

Mixed in

Getting a great sound couldn't be easier, thanks to the integrated 3-channel mixer. Each channel has its own volume control to balance your sources. Once you've got a great balance, the sound output can be adjusted to different spaces and applications, with easy contouring preset switches.

Versatile design

You can use the DXR15mkII in a variety of configurations. For floor monitoring applications, a 50° angle is integrated into the cabinet design for easy placement. Two 35mm speaker pole mounts let you mount the speaker at an angle of either 0°, or 7°.

Features

• Register your product with Yamaha and receive an extended 7-year warranty
• D-CONTOUR intelligent multi-band compressor optimises your sound
• FIR-X tuning crossover stops phase issues in the mid-range
• 50° monitor angle when laid on the side
• Two 35 mm speaker pole mounts at 0° and 7°
• Super-efficient Class-D amplification with 700-watts continuous output
• Integrated 3-channel mixer lets you easily balance input sources
• Easy to use presets for different rooms and PA configurations

Specifications

General

• System Type: 2 way, bi-amped, bass reflex powered speaker
• Frequency Range: 49Hz - 20kHz (-10dB)
• Coverage Angle: 90° x 60° (H x V) constant directivity horn
• Crossover Type: FIR-X tuning (linear phase FIR-filter)
• Max. SPL: 134dB SPL (peak)

Transducers

• Low Frequency:
  • Diameter: 15'' cone
  • Voice Coil: 2.5''
  • Magnet: Ferrite
• High Frequency:
  • Voice Coil: 1.75''
  • Diaphragm: PET
  • Type: 1'' throat compression driver
  • Magnet: Neodymium

Enclosure

• Material: ABS
• Finish: Matte
• Colour: Black
• Floor Monitor Angle: 50° symmetrical
• Dimensions: 445mm x 700mm x 380mm (W x H x D)
• Net Weight: 21.8kg
• Pole Socket: 35mm x 2 (0° or 7°)
• Rigging Points: Top x 2, Rear x 1, fits for M10 eyebolts

Amplifier

• Amplifier Type: Class-D
• Dynamic Power Rating: 1100 watts
• Continuous Power Rating: 700 watts
• Cooling: Fan cooling, 4 speeds
• AD/DA: 24-bit, 48kHz
• Signal Processing: 48-bit
• Processors: D-CONTOUR
  • FOH/MAIN
  • MONITOR
  • OFF
• Input Connectors: 1 x XLR-1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
• Output Connectors: 2 x XLR
• Idle Power Consumption: 35W
