Full Description

Features

• Van Damme Smart Control 1-Pair cable
• Terminated using two percent silver solder - lead-free RoHS compliant

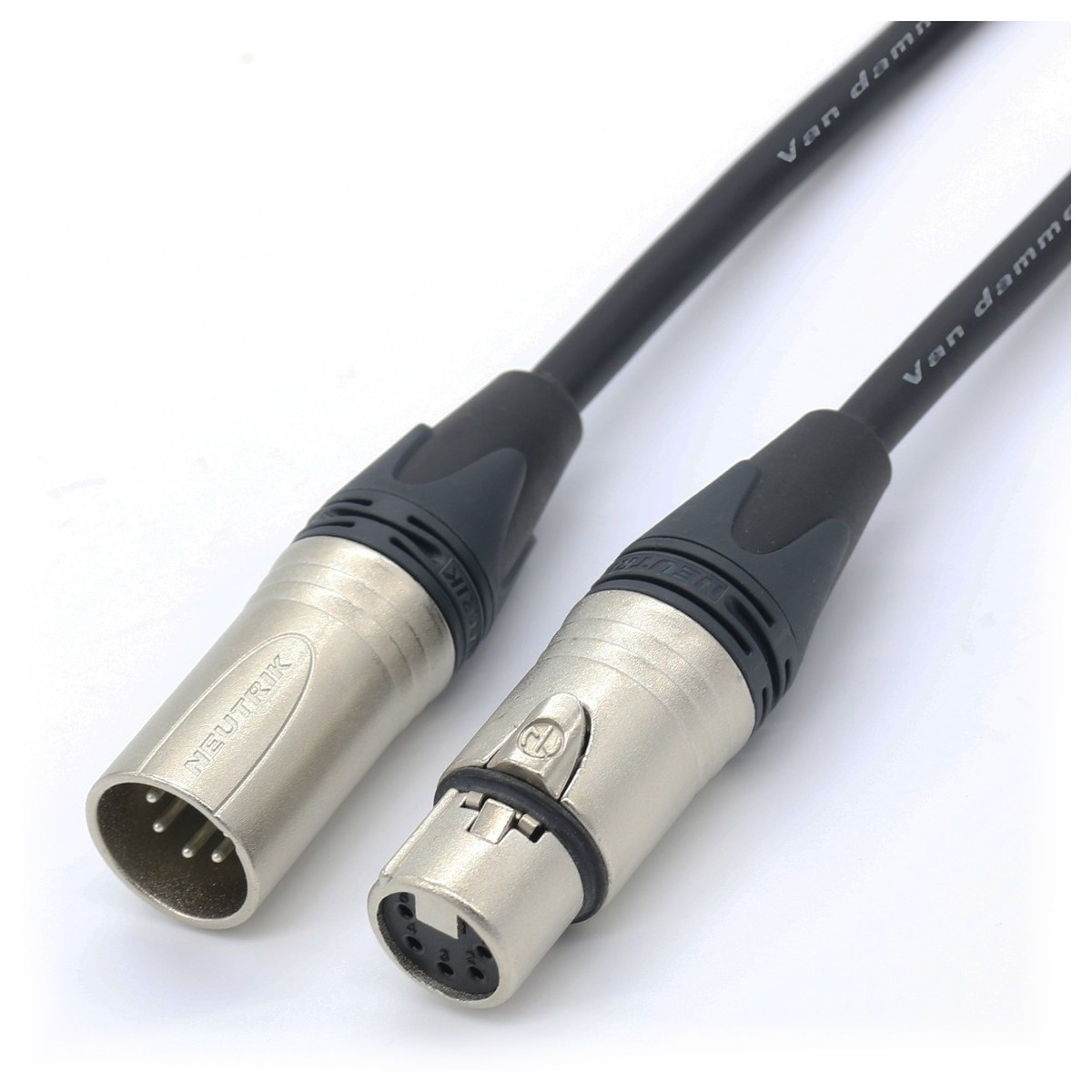

• High-performance Neutrik connectors - Neutrik NC5MXX 5-pole male to Neutrik NC5FXX 5-pole female
• Robust tour-grade cable for transmission of DMX512 lighting control protocol
• Screened twisted pair with an additional two wires for DC voltages
• PVC-jacketed precision foil-screened cables
• 110 Ohm AES/EBU pair
• 22 AWG conductors for optimum data transfer
• Flexible yet robust PVC jacket for reliable tactical use

Specifications

• Connector 1: Neutrik NC5MXX 5-pole male XLR/DMX
• Connector 2: Neutrik NC5FXX 5-pole female XLR/DMX

Twisted Pair Specifications

• Conductor:
  • Material: Bare ultra-pure oxygen-free copper wire
  • Stranding: 7 x 0.25mm (0.34mm²) AWG 22/7
• Insulation:
  • Material: Foam skin polyolefin
  • Diameter: 2.00mm +/-0.10
  • Colour Coding: Red and black
• Cabling:
  • Type: Twisted pair
  • Lay Length: -25mm
• Separator Material: Polyester tape

DC Power Conductors Specifications

• Conductor:
  • Material: Bare ultra-pure oxygen-free copper wire
  • Stranding: 1.00m² AWG 17
• Insulation:
  • Material: PVC
  • Diameter: 2.15mm +/-0.10
  • Colour Coding: Brown and blue

Overall Jacket

• Material: PVC
• Colour: Pearl Blackberry RAL 4012
• Overall Diameter: 7.50mm
• Bend Radius: 15 x overall diameter

Physical Properties Unaged

• Jacket at 60°C:
  • Tensile Strength: 9N/mm²
  • Elongation: >125 percent
  • Heat Shock Test: 150°C x 1 hour / no cracks
• Weight: kg/km
  • 268-600-000: 70.5
  • 278-600-000: 71

Electrical Characteristics

• Resistance:
  • Conductor: <58.8 Ohm/km
  • Insulation: >5000 M Ohm/km
• Capacitance:
  • Core to Core: 40pF/m nominal
  • Core to Shield: 80pF/m nominal
• Impedance: 110 ohms +/-20 percent (1 - 4 MHz)
• Attenuation at 3MHZ: 4.90db/100m
• Test Voltage: 500 Vdc x 1 minute ok
