Full Description

Convenient and Hassle-Free Monitoring

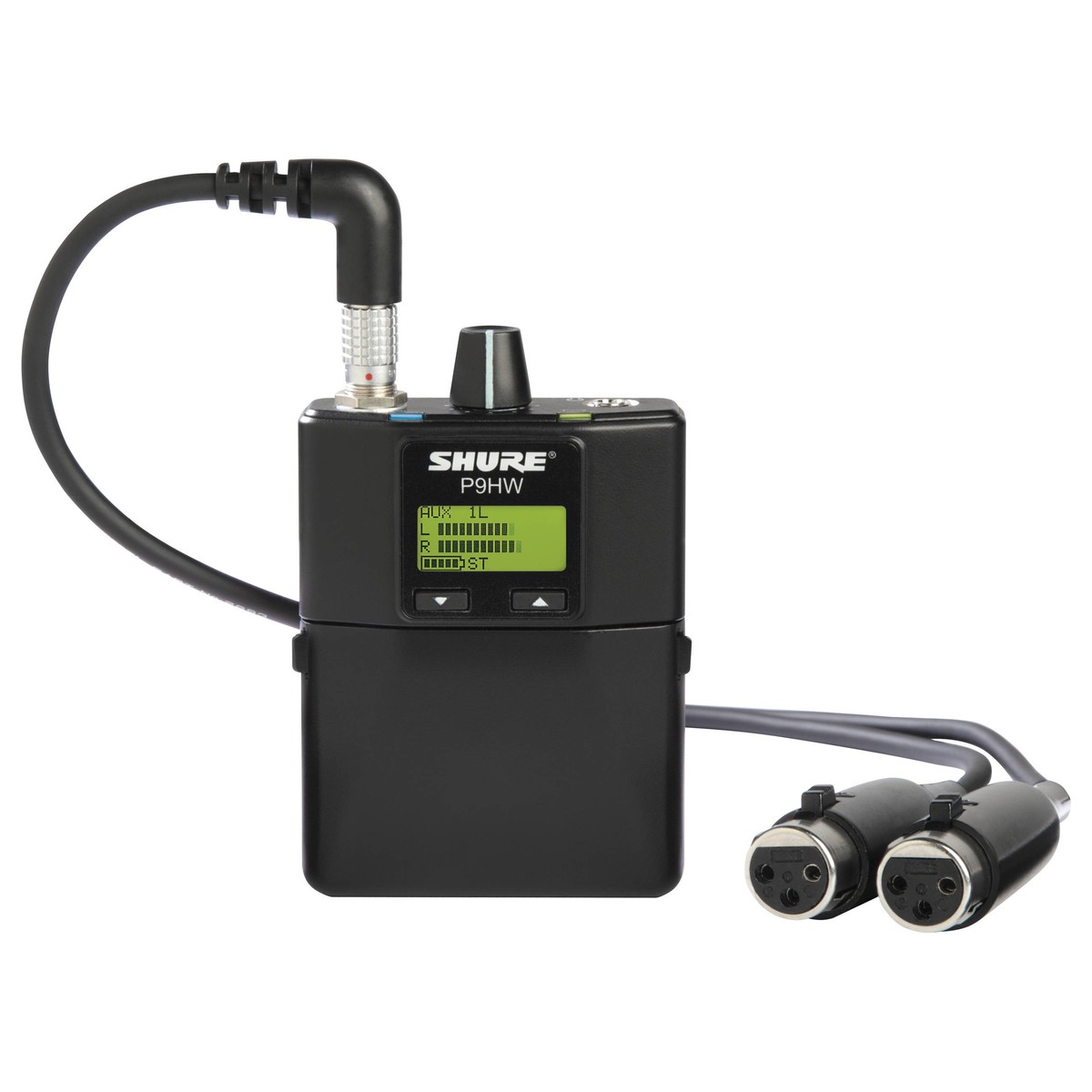

Traditional stage monitors can be problematic in certain situations. They can clutter up your performance environment, cause feedback, and they can be an inconvenience to transport and move. The P9HW does away with those problems. Designed as a personal replacement for onstage monitoring loudspeakers, this compact bodypack allows you to hear what you want, exactly the way you want. No more tripping over cumbersome cabinets. The P9HW allows you to connect up to two separate mixes and tailor your monitoring experience to you.

MixMode® Technology

The P9HW boasts two modes of operation - Stereo mode, and MixMode. Stereo mode sends audio from channel 1 to the left earphone, and audio from channel 2 to the right earphone, giving you separate high-quality mixes for each ear. If you'd prefer to hear both channels through both earphones, simple switch to MixMode. This unique mode blends the two initially separate mixes together with the ability to adjust the levels of either mix, allowing you to hear a tailored blend of the two through both sides. Both modes work exceptionally well in a wide variety of situations, and the P9HW lets you choose which best suits you at any time.

Rugged and Reliable Construction

Shure have developed a reputation for building equipment you can rely on for every single show. The P9HW is another perfect example. With a robust body constructed from strong and lightweight aluminium, all of the precious internal components are kept safe. It can be easily clipped onto your belt or guitar strap and remain out of the way when in use. Plus, with up to 9 hours of continuous use available from two standard AA batteries, you can finish your show without the worry of losing power mid-way through. The internal AA adapter can also be removed, allowing you to install a Shure SB900 rechargeable battery (not included). If you're looking for reliable monitoring, look no further than the P9HW.

Features

• Two-channel stereo bodypack designed for personal monitoring on stage
• Portable, lightweight, and unobtrusive design
• Excellent clarity with enhanced control over your sound
• Dramatically reduced chance of feedback compared to traditional stage monitors
• Removes the clutter that stage monitors can sometimes cause
• Versatile system designed for use in sound reinforcement applications
• Perfect for presentations, live music, studio recording, broadcasting, theatre, and more
• Up to 9 hours of continuous operation from two AA batteries
• LEMO audio input for use with the included Y-splitter cable for connecting up to two audio sources
• Ideal for connecting two different monitor mixes such as an instrument mix and/or a vocal mix
• Stereo mode or MixMode choices for versatile monitoring options
• Stereo mode allows left/right balance adjustment for two mixes
• MixMode allows volume adjustment of the mono blend of two input mixes
• Volume limiter allows you to set the maximum volume adjustment range
• Built-in 4-band parametric equalizer
• Switchable line (+4dBu) and aux (-10dBV) input level
• Clip Indicator illuminates when the input is overloaded
• Five-segment battery life meter
• Standard 3.5mm output allows you to use your favourite headphones/IEMs with ease
• Easy-to-read display with intuitive controls for simple operation
• Removable AA adapter allows you to use a Shure SB900 rechargeable battery (SB900 not included)
• Rugged all-metal construction with an easy-to-adjust volume knob and mix control
• Power-save mode and automatic power-off preserves your battery life

Specifications

• Audio Frequency Response: 20Hz - 20kHz (+/-3dB)
• Signal-to-Noise Ratio: 98dB(A-weighted) (typical)
• Total Harmonic Distortion: <0.2 percent at 1kHz (typical)
• Channel Separation: >55dB at 1kHz
• Operating Temperature: -18°C to +63°C
• Minimum Load Impedance: 9.5 Ohms
• Audio Input:
  • Connector Type: LEMO
  • Configuration: Electronically-balanced
  • Line Input Impedance: 45 kOhms
  • Aux Input Impedance: 66 kOhms
  • Nominal Input Level: Switchable
    • Line: +4dBu
    • Aux: -10dBV
  • Maximum Input Level:
    • +4dBu Line: +20dBu
    • -10dBV Aux: +8dBu
  • Phantom Power Protection: Up to 60V DC
• Audio Output Connector: 3.5mm (1/8'')
• Battery Type: AA
• Battery Life: 9 hours (continuous use)
• Dimensions: 99mm x 66mm x 23mm / 3.9'' x 2.6'' x 0.9'' (H x W x D)
• Weight: 196g / 6.6oz. (with batteries)
