Full Description

Built for the most critical of listeners

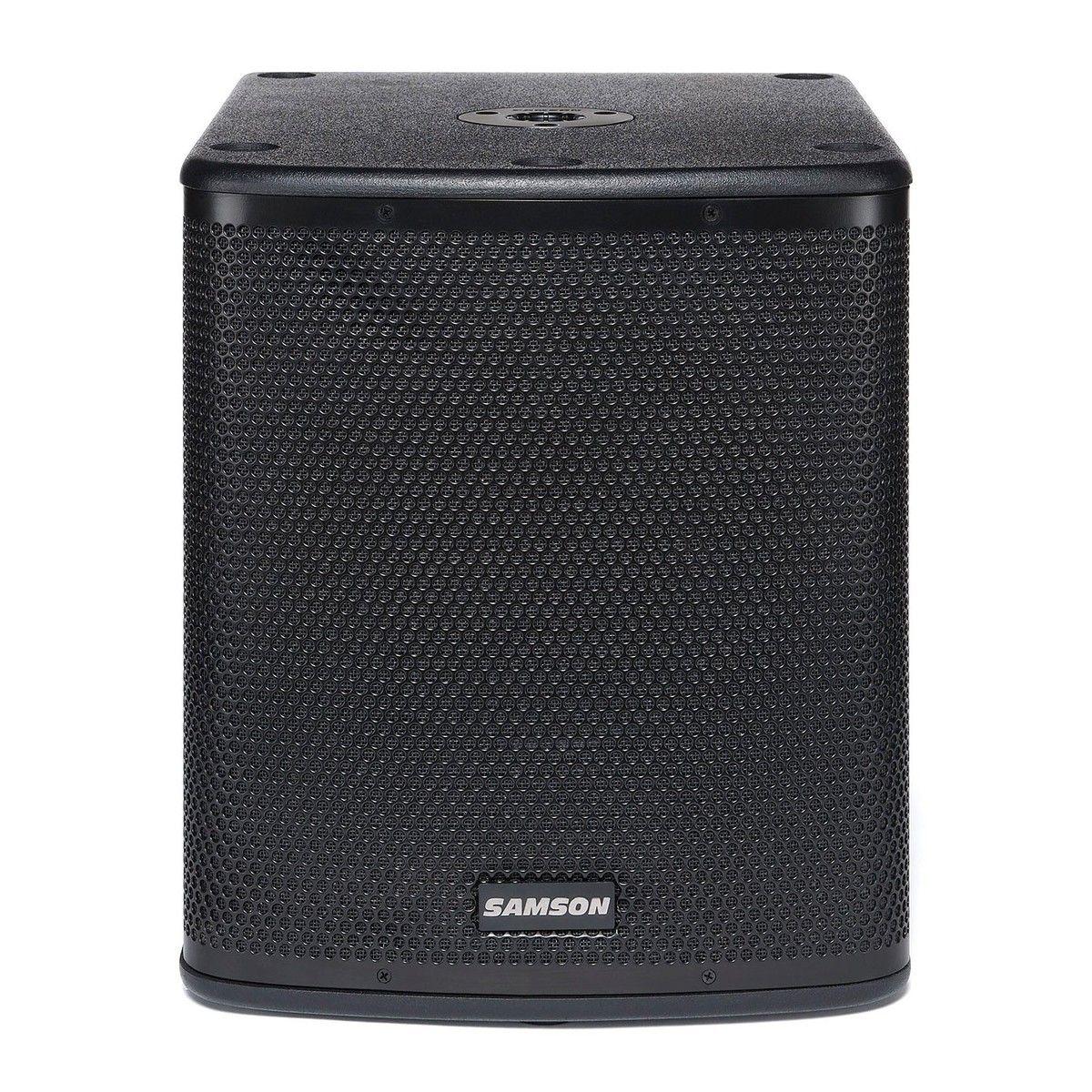

Big sound with more to offer. The Auro D1200 offers extended low frequency reproduction all the way down to 45Hz. That means you’ll hear every nuance of your bottom end with clear and articulate detail. Crank the volume up for maximum impact. With 700W peak power output on board, this behemoth subwoofer is capable of reaching max. SPLs of 126dB. You’ll be sure to turn heads. But huge sound doesn’t mean a huge enclosure. Thanks to class-D amplification, the D1200 remains compact and lightweight without compromising on impact. The result is a portable speaker with plenty of power and punch.

Features

• Small and mighty design for huge sound with a compact footprint
• Exceptional low frequency reproduction from a 12” long excursion LF driver
• Capable of reaching high volumes with 700W of peak output power
• Connects to a wide range of equipment with XLR-1/4” combo inputs and parallel XLR outputs
• Monitor your speaker’s performance with signal, limiter, and protect LED indicators
• Total control of your low frequencies with a variable low pass filter
• The best sound in every environment thanks to a 3-position (normal, deep, boost) DSP contour control
• Effortlessly correct phase alignment with an integrated polarity switch
• Highly robust plywood enclosure designed to tackle demanding environments
• Scratch and scuff resistant textured paint finish
• Easy to position thanks to an integrated pole mount receptacle
• Easy to carry with two large ergonomic handles

Specifications

Amplifier

• Power: 700W
• Design: Class-D

Transducer

• Driver: 12” paper cone, 2.5” voice coil diameter
• Sensitivity: 95dB spl @ 1W/1m

Acoustic Performance

• Frequency Response: 45Hz – 200Hz (+/-3)
• Max. SPL (700W): 126 dB @ 1m

Electronic Crossover

• Crossover Type: 24dB/oct Linkwitz-Riley
• Crossover Frequency: 80Hz – 200Hz

Controls and Connectors

• Inputs (A and B): Balanced Female XLR/1/4 Combo – Line Level
• Thru Outputs (A and B): Balanced Male XLR – Line Level
• Controls: Master Level Rotary, DSP Switch, Phase Switch, LPF Rotary
• Indicators: Signal, Limiter, Protect

Power Supply

• Power Consumption: 800W max.
• AC Connector: 3-pin IEC 250 VAC, 20 A male
• Fuse: 250V/T5AH

Enclosure

• Construction: 15mm plywood
• Finish: Textured black polyurethane paint
• Handles: 2 x steel
• Grille: Perforated steel
• Mounting Method: Integral 1 3/8” (35mm) Pole Mount Receptacle

Dimensions and Weight

• Dimensions: 395mm (L) x 483.5mm (W) x 457mm (H)
• Weight: 19kg
