Full Description

Take the hassle out of live sound

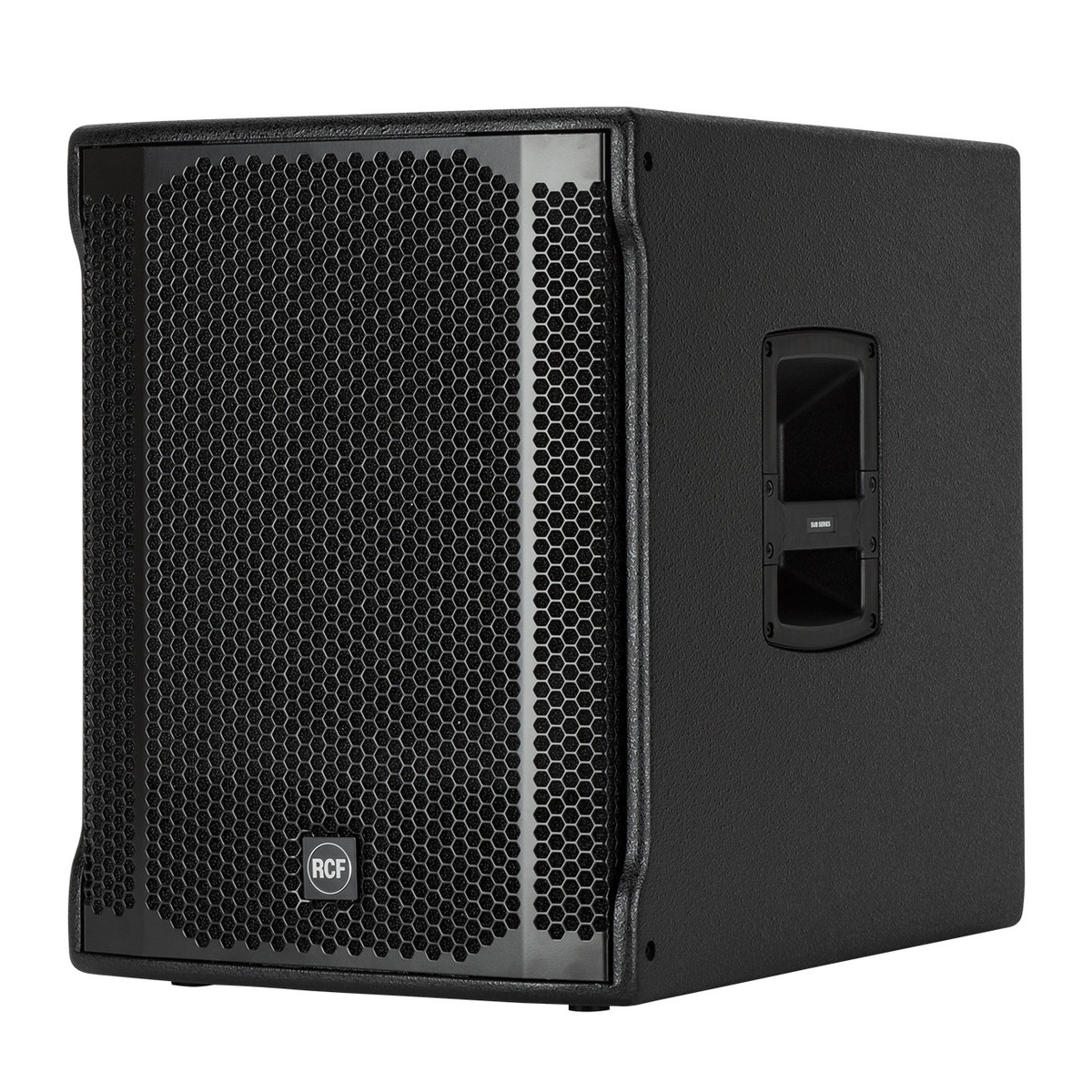

Powerful low end. Made simple with RCF Audio. The SUB 705-AS II is easy to pair with satellite speakers thanks to its stereo XLR input/output connectors and adjustable crossover frequencies. Just plug in, switch on, and play. It’s that simple. 1400W of power ensures that everyone can feel the bass. And when you crank your sub to high volumes, the bass reflex housing ensures minimal rattling and maximum projection.

Universally compatible with RFC Audio speakers

Live sound made easy. The SUB 705-AS II is designed to integrate seamlessly into RCF professional speaker systems. The bass reflex design guarantees a deep, linear power response, while the 15'' woofer and 3'' voice coil ensure the minimum of power compression. It’s the perfect companion for 8'', 10'', or 12'' satellite speakers, as well as the ART 3, ART 7, or D-Line Series drivers.

Features

• Powerful low end from a 1400-watt digital amplifier
• Articulate frequency response thanks to a 15” woofer
• Clear audio from a 3” voice coil
• No unwanted rattling thanks to bass reflex housing
• High SPL levels at low frequencies
• Sends the correct frequencies to the correct speakers with an onboard stereo crossover
• Highly flexible with switchable crossover frequencies
• Ensures correct phase alignment with the phase-reverse switch
• Fully protected from damages via electronic equalisation and soft limiter
• Immersive audio from stereo XLR input and stereo XLR output
• Easy to move and transport thanks to ergonomic side handles
• Set up in minutes with the integrated pole mount

Specifications

• Power Supply Requirements: 220-240V

Acoustical Specifications

• Frequency Response -3 dB: 40 Hz - 120 Hz
• Max SPL: 131 dB
• Woofer: 15", 3.0" voice coil

Input/Output Section

• Input connectors: Stereo XLR
• Output connectors: Stereo XLR
• Input sensitivity: -2 dBu / + 4 dBu

Processor Section

• Crossover frequencies: 80-110 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Volume, EQ, phase, crossover

Amplifier Specifications

• Total Power (Peak): 1400 W
• Total Power (RMS): 700 W
• Cooling: Convection
• Connections: VDE connector

Physical Specifications

• Cabinet Material: Baltic Birch plywood
• Hardware: Pole mount
• Handles: 2 side
• Pole Mount/Cap: Yes
• Grille: Steel
• Colour: Black
• Height: 568 mm (22.36")
• Width: 430 mm (16.93")
• Depth: 595 mm (23.43")
• Net Weight: 28.0 kg (50.70 lbs)
