Full Description

Very limited run with a custom design and controls

A-Trak has long been a popular name in the DJ world and now you can get that same powerful sound that A-Trak is renowned for. With a custom-tuned frequency response and sound curve, A-Trak has tweaked the sound of the mixer, adding more depth to the low-end - perfect for bass music. The beautifully crated outer shell features a shining silver finish complete with aluminium-capped rotary-style knobs for the ultimate playing experience. This special edition version of the SEVENTY is only available for a limited time, so makes sure you don't miss out!

Now supports Scratch Bank – Serato 2.4.3 update

Updating your firmware and your Serato DJ Pro software to 2.4.3 gives you instant access to the Scratch Bank. This unique mode allows you to load samples and even songs instantaneously from up to four banks from Serato DJ Pro. You can trigger these audio clips by simply tapping a pad. You can even start the sample from a point that you specify. From here you can access up to 32 audio samples at the touch of a button.

A range of controls

The RANE SEVENTY introduces three ultra-light MAG FOUR faders that allow for precise control and a hands-on mixing experience. Also provided are 16 Akai Professional dual-layer MPC pads per deck with a variety of independent mode controls per deck including hot cue, pitch‘n time, saved loops, sampler, roll and transport.

FX, loops and instant doubles

The SEVENTY ensures your workflow can be streamlined, putting a range of tools at your disposal to get hands-on with the music. The layout of the SEVENTY includes six, radio-style FX buttons that give instant access to the internal post-fader Flex FX and Serato DJ software FX. These dual dedicated loop sections and instant double buttons are laid out for immediate access.

Everything you’d expect from a professional mixer

As well as the new, intuitive features, the RANE SEVENTY mixer includes controls that you would expect to find on a DJ mixer. These include a three-band isolator EQ, plus dedicated high/low pass filters per channel; Serato playlist navigation and control; dual diecast aluminium FX paddles with 180-degree rotation and a radiant OLED display for accurate visual feedback of core mixer parameters. Combine this with the class-leading signal-to-noise ratio of 114dB and you’ll soon realise your potential with the RANE SEVENTY.

Multiple connectivity options

Ideal for travelling performers, the RANE SEVENTY has connection options for every environment. Two DJs can perform simultaneously with seamless handovers via the unit’s dual USB connections. Performance-driven connectivity, including switchable Phono/CD inputs per deck, an RCA aux line input per deck and an RCA Session input/output for battle teams, means you’ll be able to perform whatever the setting. Other connectivity options include balanced XLR master outputs, dual 3.5mm and ¼-inch headphone outputs, and ¼-inch jack booth outputs. The SEVENTY also integrates easily with other DJ equipment and turntables by featuring assignable USB controller inputs.

Features

• Signature edition designed in collaboration with A-Trak
• Customised sound curve and frequency response by A-Trak

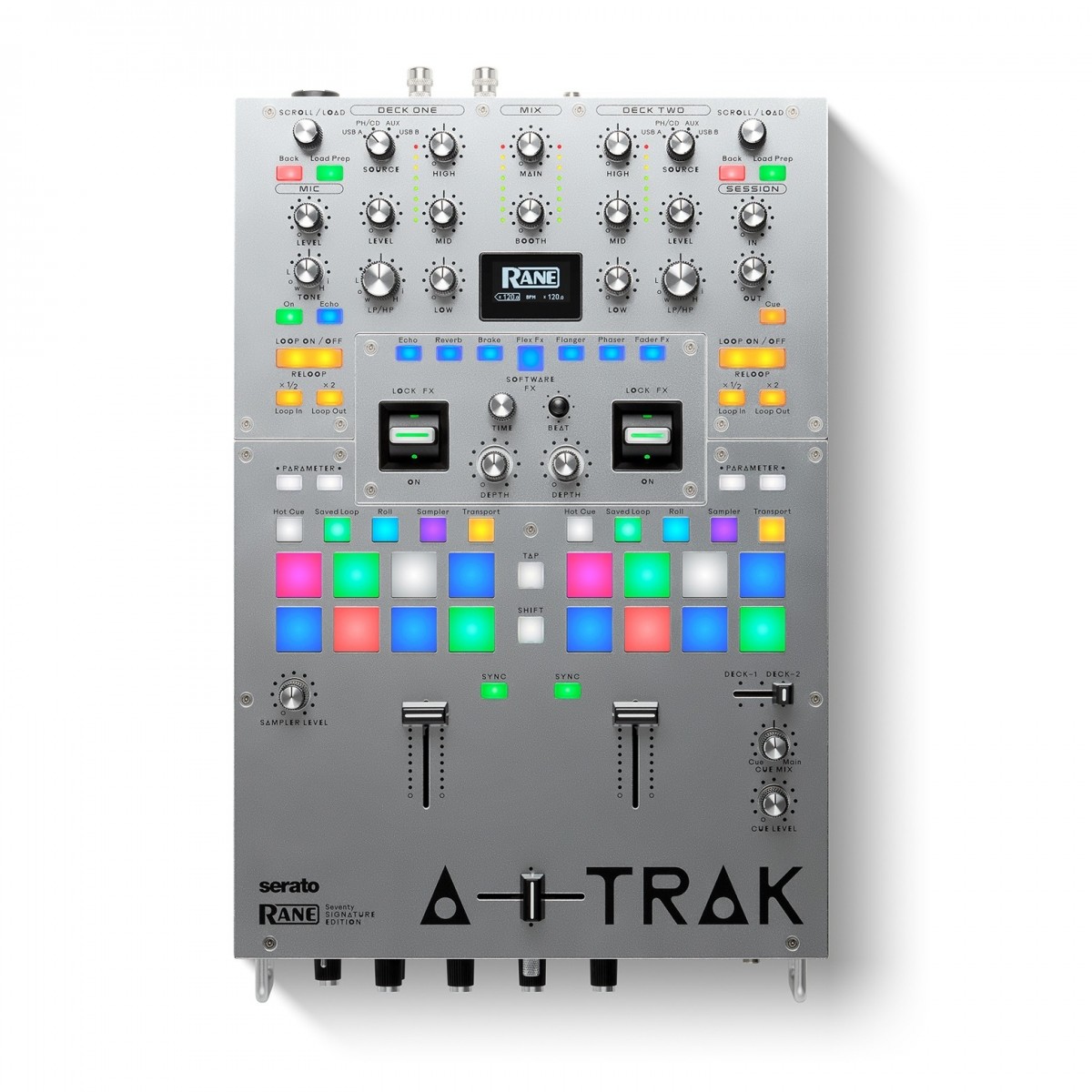

• Exclusive eye-catching design with silver solid-steel exterior and premium rotary-style aluminium-capped knobs
• Intuitive high-performance layout
• MAG FOUR contactless faders
• External crossfader tension-adjustment control
• Solid steel construction & front guard handle protection
• Dual post-fader internal FLEX FX engines
• Serato DJ FX controls
• Independent pad modes for each channel
• 32 MIDI-Assignable Pads
• Browse and track select controls
• Intuitive Instant Double buttons, toggle as Sync On-Off or Silent Cue mode
• Dedicated loop controls
• Dual diecast aluminium 180? rotatable FX paddles
• RANE TWELVE Connection Hub
• Dual microphone inputs
• Industry leading signal-to-noise ratio of 114dB
• Dual USB connections for DJ handoffs
• 16 Akai Professional MPC performance pads - perfect for finger-drumming, sampling and triggering sounds

Specifications

• Converters: AKM high definition audio; 24-bit PCM, 48kHz
• Digital signal processing: 32-bit, floating point, double precision
• Dynamic range (A-weighted, unity gain):
  • ADC: 114dB
  • DAC: 114dB
  • CD input to analogue output: 114dB
  • CD input to USB output: 114db
  • USB input to analogue output: 114dB
• Inputs:
  • Microphone ½ (combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable):
    • Analogue gain: 30dB (Mic), 4.75dB (Line)
    • Maximum input: 0.126Vrms (Mic), 2.3Vrms (Line)
    • Gain trim: Off to +20dB (unity at center)
  • Aux inputs ½ (RCA stereo pairs):
    • Maximum input: 4Vrms
    • Dynamic range (A-weighted): 114dB
  • CD/Phono inputs ½ (RCA stereo pairs, switchable):
    • CD: line
    • Maximum input: 4Vrms
    • Dynamic range (A-weighted): 114dB
    • Phono: RIAA
    • RIAA curve: +0.1/-0.2dB
    • Gain (@ 1kHz): 30dB
    • Maximum input (@ 1kHz): 126mV
  • Session input (RCA stereo pair):
    • Maximum input: 4Vrms
    • Dynamic range (A-weighted): 114dB
• Outputs:
  • Main outputs (XLR):
    • Frequency response: 20Hz to 20kHz (± 0.2dB)
    • Maximum output: 8Vrms
    • THD+N (@ 1kHz, 4Vrms): 0.002
  • Booth outputs (1/4”/6.35mm TRS):
    • Frequency response: 20Hz to 20kHz (± 0.2dB)
    • Maximum output: 8Vrms
    • THD+N (@ 1kHz, 4Vrms): 0.002
  • Session outputs (RCA stereo pair):
    • Frequency response: 20Hz to 20kHz (± 0.2dB)
    • Maximum output: 4Vrms
    • THD+N (@ 1kHz, 2Vrms): 0.002
  • Headphone outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS):
    • Maximum output voltage: 4V (no load)
    • THD+N (@ 1 kHz, 2 Vrms): 0.003
    • Output power: 96mW (50 ohms)
    • Controls: on/off muting
• Display: 1.6” OLED (diagonal)
• Pads: (16) velocity-sensitive multi-colour back-lit pads (8 per deck, 10 modes each)
• Faders: (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
• Connectors:
  • (2) XLR outputs (Main)
  • (2) 1/4” (6.35mm) TRS outputs (booth)
  • (4) RCA stereo input pairs (deck 1–2)
  • (2) XLR / 1/4” (6.35mm) TRS inputs (mic 1–2)
  • (1) RCA stereo input pair (session)
  • (1) RCA stereo output pair (session)
  • (1) 1/4” (6.35mm) TRS output (headphones)
  • (1) 1/8” (3.5mm) TRS output (headphones)
  • (1) 1/4” (6.35mm) TRS input (footswitch)
  • (2) USB Type-A ports (deck 1–2 USB controllers)
  • (2) USB Type-B ports
  • (1) IEC power cable input
• Power:
  • Connection: IEC
  • Voltage: 100–240V, 50/60Hz
  • Consumption: 30W
• Dimensions (width x depth x height): 285 x 445 x 105mm
• Weight: 5.6 kg
• Product code: SEVENTYATRAKXUK
