Full Description

For performers who demand the best

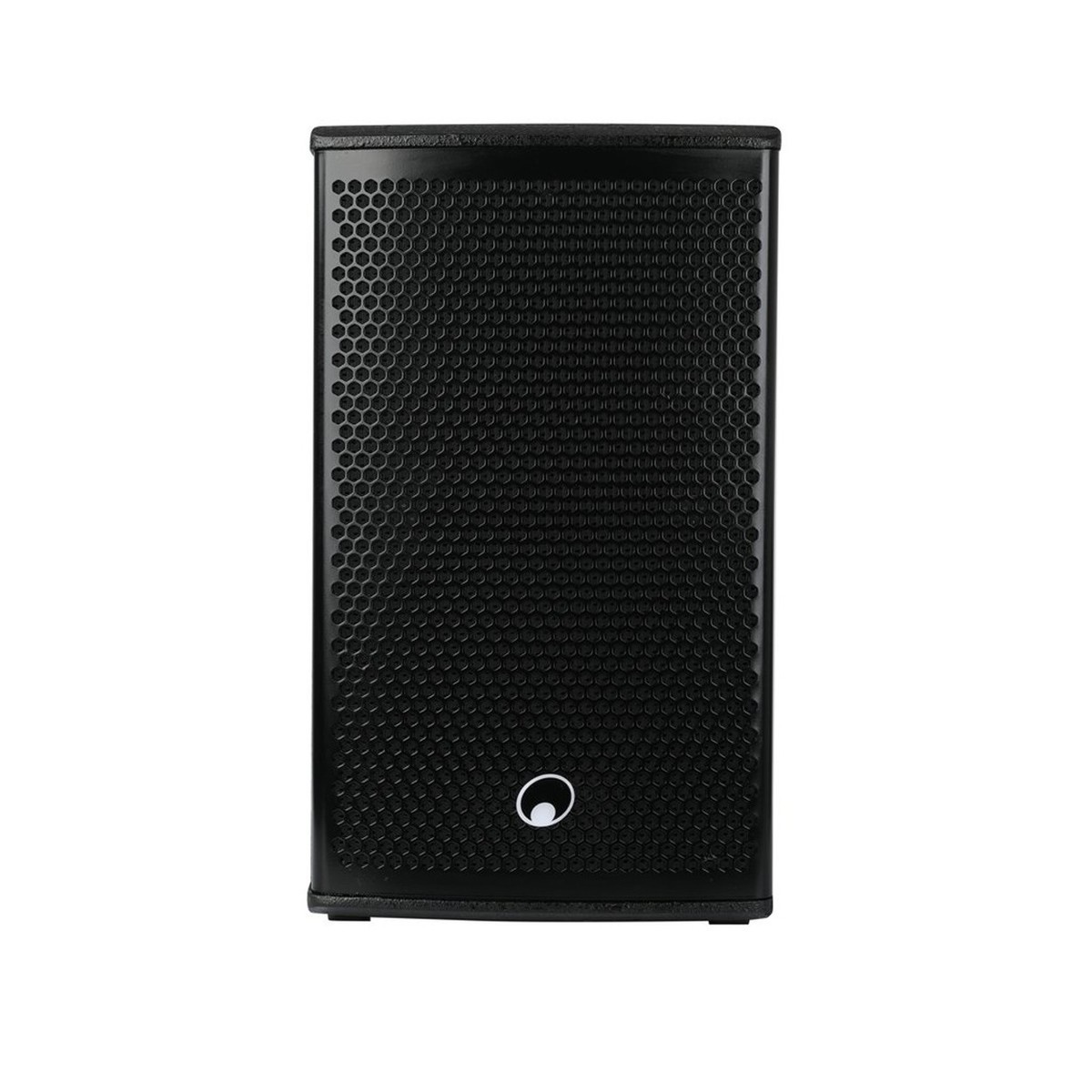

It can be hard to achieve great live sound. That’s why the Omnitronic PAS-212A MK3 has been designed to make it easy for everyone. Tap into unrivalled performance from an onboard DSP. Intuitive digital signal processing lets you quickly adjust your sound to match the demands of your venue. Three EQ presets help you dial your audio, offering DJ, monitor, and flat operation modes. Taming your low frequencies is easy thanks to a switchable low cut. No matter where you perform, you’ll always get sound that everyone can enjoy.

Features

• Full-range top speaker, perfect for portable and permanent live sound applications
• Reach high volumes without distortion thanks to 450W RMS output power
• Ideal for use as a satellite speaker or floor monitor with a multi-functional trapezoid cabinet
• Powerful bass response from a 12” woofer
• Clear highs from a 1” compression driver
• Improved transient response from custom designed voice coils
• Enhanced projection with reduced resonance thanks to a bass-reflex system
• Tame unruly bass frequencies with the switchable low cut (120Hz, 90Hz)
• Best in class performance from an onboard DSP
• Get the best sound in seconds thanks to three EQ presets with indicators
• Monitor your speaker’s performance with master control, limit, signal, and power LEDs
• Easy to link other active speakers via XLR output
• Pristine signal integrity via XLR/6.3mm combo Jacks and RCA switchable mic/line
• Optimised for combination with PAS subwoofer
• Fully protected against overload with switch-on delay and limiter
• Easy to position thanks to a dual flange with 0-degree – 5-degree tilt angles
• Safe and secure suspension via M8/M10 threaded inserts
• Transport with confidence thanks to a scratch-resistant lacquer surface
• Excellent protection for your drivers from a protective grille
• Transport with ease using the ergonomic recessed handles

Specifications

• Power Supply: 230V AC, 50Hz
• Power Consumption: 500W
• Output Power: 450 W RMS
• Power Connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
• Frequency Range: 60Hz – 20kHz
• Max. SPL: 125dB
• DSP: Yes
• Dispersion Angle: 90-degrees x 60-degrees
• Attachment Angle: Ø 35mm variable tilt
• Flying Points: 6 x M8 thread; 4 x M10 thread
• Circuitry: Class D
• Connections: Input: via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Link: via 3-pin XLR
• Input Channels: 1 x mono with Mic-line switch via XLR, channel control via Rotary knob, 1 x mono via XLR or RCA, channel control via Rotary knob
• Speakers: 1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet, Basket material aluminium, Voice coil compression tweeter highs (1.5") approx 4 cm, Horn vent (1") approx 2,5 cm, 1 x woofer (12") approx 30 cm, Voice coil lows (3") approx. 8 cm
• Material: Birch multiplex
• Colour: Black, painted
• Dimensions: 39cm (W) x 38cm (H) x 61.5cm (D)
• Weight: 22.3kg
