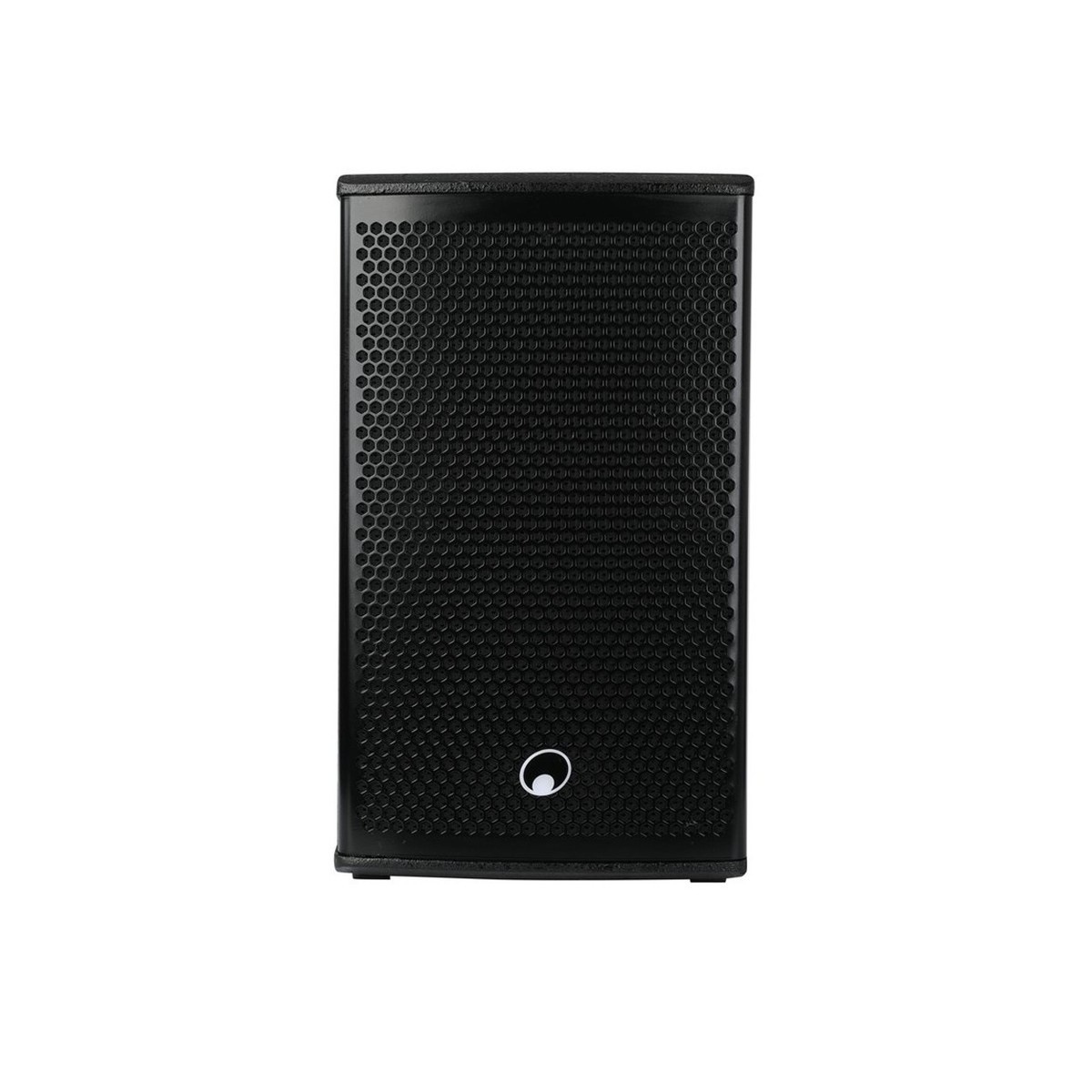

It can be hard to achieve great live sound. That’s why the Omnitronic PAS-210A MK3 has been designed to make it easy for everyone. Tap into unrivalled performance from an onboard DSP. Intuitive digital signal processing lets you quickly adjust your sound to match the demands of your venue. Three EQ presets help you dial your audio, offering DJ, monitor, and flat operation modes. Taming your low frequencies is easy thanks to a switchable low cut. No matter where you perform, you’ll always get sound that everyone can enjoy.
Features
Full-range top speaker, perfect for portable and permanent live sound applications
Reach high volumes without distortion thanks to 300W RMS output power
Ideal for use as a satellite speaker or floor monitor with a multi-functional trapezoid cabinet
Powerful bass response from a 10” woofer
Clear highs from a 1” compression driver
Improved transient response from custom designed voice coils
Enhanced projection with reduced resonance thanks to a bass-reflex system
Tame unruly bass frequencies with the switchable low cut (120Hz, 90Hz)
Best in class performance from an onboard DSP
Get the best sound in seconds thanks to three EQ presets with indicators
Monitor your speaker’s performance with master control, limit, signal, and power LEDs
Easy to link other active speakers via XLR output
Pristine signal integrity via XLR/6.3mm Jack, switchable mic/line
Optimised for combination with PAS subwoofer
Fully protected against overload with switch-on delay and limiter
Easy to position thanks to a dual flange with 0-degree – 5-degree tilt angles
Safe and secure suspension via M8/M10 threaded inserts
Transport with confidence thanks to a scratch-resistant lacquer surface
Excellent protection for your drivers from a protective grille
Transport with ease using the ergonomic recessed handles
Specifications
Power Supply: 230V AC, 50Hz
Power Consumption: 350W
Output Power: 300 W RMS
Power Connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency Range: 65Hz – 20kHz
Max. SPL: 121dB
DSP: Yes
Dispersion Angle: 90-degrees x 60-degrees
Attachment Angle: Ø 35mm variable tilt
Flying Points: 5 x M8 thread; 4 x M10 thread
Circuitry: Class D
Connections: Input: via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Link: via 3-pin XLR
Input Channels: 1 x mono with Mic-line switch via XLR, channel control via Rotary knob
Speakers: 1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet, Basket material aluminium, Voice coil compression tweeter highs (1.5") approx 4 cm, Horn vent (1") approx 2,5 cm, 1 x woofer (10") approx 25 cm with ferrit magnet, Voice coil lows (2.5") approx. 6.35 cm
