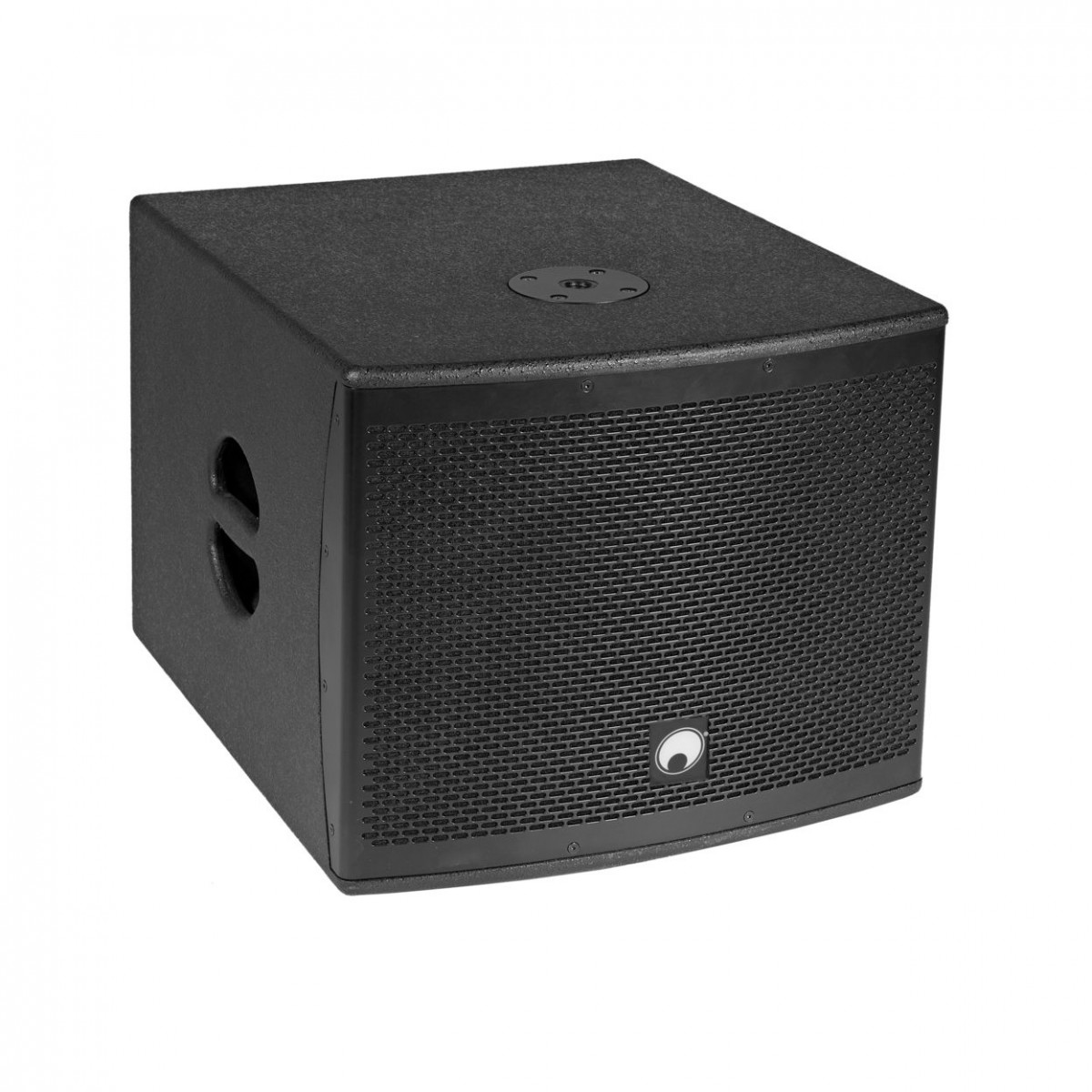

Powerful low-end reproduction from an active 12” subwoofer
Capable of reaching loud volumes without distortion (up to SPLs 0f 128dB)
Minimises resonance with a bass reflex enclosure
Efficient and reliable class-D amplification technology
Best-in-class performance with digital signal processing (DSP)
Stream audio wirelessly with Bluetooth connectivity
Fine tune your audio with four EQ presets built-in
Prevents peaks, clipping, and distortion with a built in crossover and signal limiter
Independent volume control from your subwoofer and satellite speakers
Can be operated in stereo or mono
Correct alignment issues with the phase reverse switch
Monitor your speaker’s performance with indicators for fault, limit, signal, and power
Shielded against soft start, short-circuit, overcurrent, and overheating with built-in protection circuits
Mount satellite speakers with ease thanks to the M20 flange
Damage resistant enclosure with built-in handles and anti-scratch lacquer finish
Perfect for portable applications with a low weight construction
Specifications
Power supply: 230 V AC, 50 Hz
Power consumption: 1000 W
Output power: 1 x 500 W RMS, 2 x 100 W RMS (8 ohms), 2 x 200 W RMS (4 ohms)
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Frequency range: 40 - 160 Hz
Sensitivity: 103 dB
Max. SPL: 128 dB
DSP: Digital signal processor
Control: Bluetooth
Attachment system: M20 thread
Circuitry: Class D
Connections: Input: 2 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: 1 x line via 3.5 mm jack (stereo) mounting version, Input: 1 x line via stereo RCA, Output: 2 x line via 3-pin XLR, Output: 2 x Top via speaker built-in socket (f)
Input channels: 1 x stereo via Combination socket or RCA or Bluetooth, channel control via Rotary dial
Speakers: 1 x woofer (12") approx 30 cm, Voice coil lows (3") approx. 8 cm
