Full Description

Features

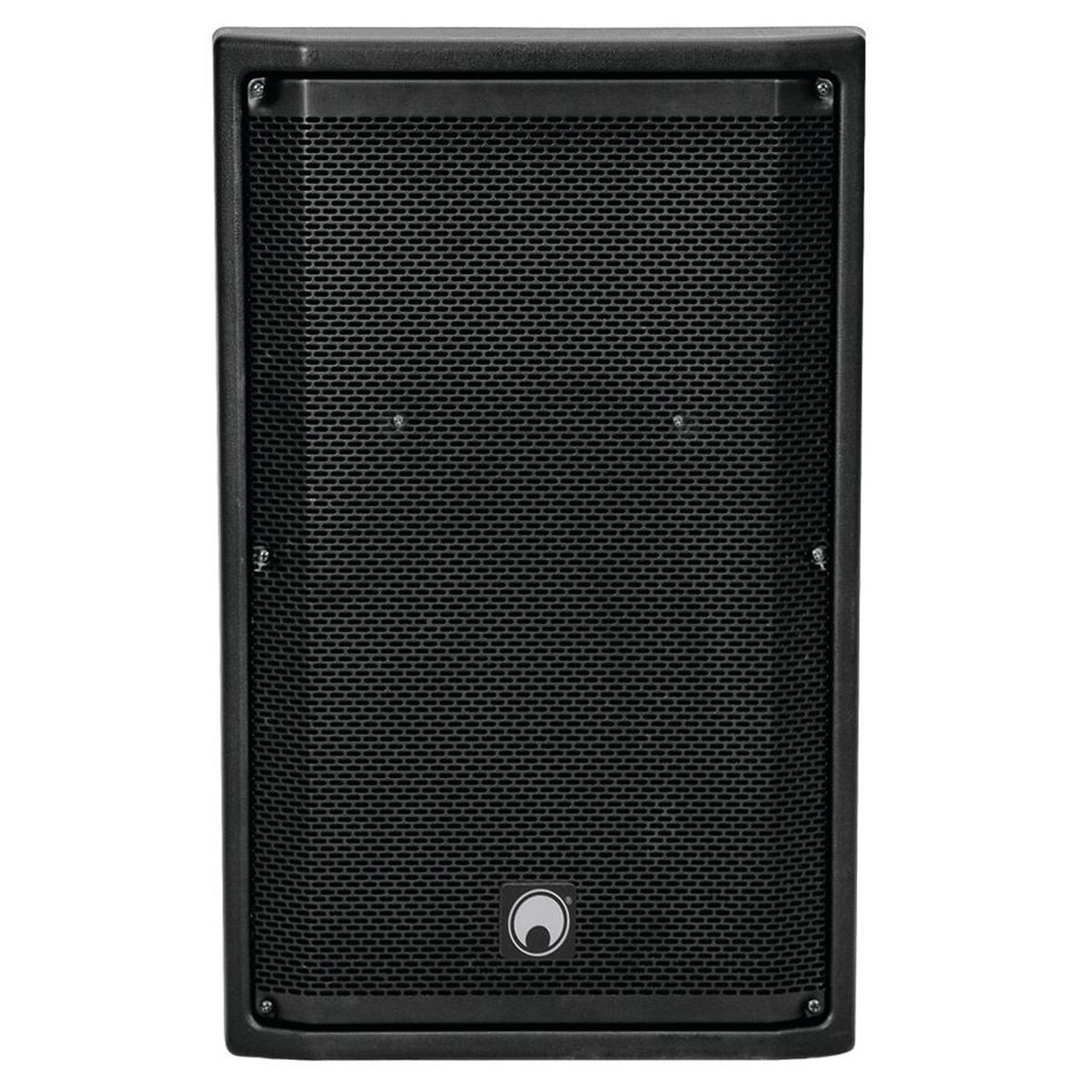

• Active 12/2 full range system for mobile live & DJ application
• DSP-controlled biamp amplifier (LF class D, HF class A/B)
• Application presets for quick sound contouring
  • Live (liner adjustment)
  • Music (slight low & high frequency boost)
  • Speech (optimised speech intelligibility)
  • DJ (increased presence & bass)
  • Tripod (for stand mounting)
  • Monitor (for use as a floor monitor)
  • Wall (for wall mounting)
• 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ & signal delay
• Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets & notebooks
• 2-way bass-reflex enclosure with 12-inch woofer & 1.35-inch driver
• Alphanumeric LCD with blue backlight
• 2 mic/line inputs with separate level controls
• Parallel XLR output
• Limiter for overload protection
• Master volume/DSP push control
• Power, signal & limit LED
• Stable, plastic housing with protective grille & handles
• 36 mm flange for stand installation
• Ideal as standing, floor monitor, on speaker stand or wall holder

Specifications

• Amplifier Power: 300W RMS LF, 60W RMS HF
• LF Speaker: 12'' With 40 mm Voice Coil
• HF Speaker: 1.35'' Driver
• THD: 0.05 Percent
• DSP: 24-Bit, 96kHz Sampling Frequency
• Bluetooth: Yes
• Inputs Mic/Line: Combination XLR/6.3 mm Jack, Balanced
• Parallel Output: XLR, Balanced
• Sensitivity: 95 dB (1W, 1M)
• Frequency Range: 55Hz - 20kHz
• Power Supply: 100 - 240 V AC, 50/60Hz
• Protection Circuits: Soft Start, Overheat, Overload, Overvoltage, Low Voltage, Clipping, DC Voltage
• Weight: 15 kg
• Dimensions
  • Height: 350 mm
  • Width: 380 mm
  • Depth: 610 mm
