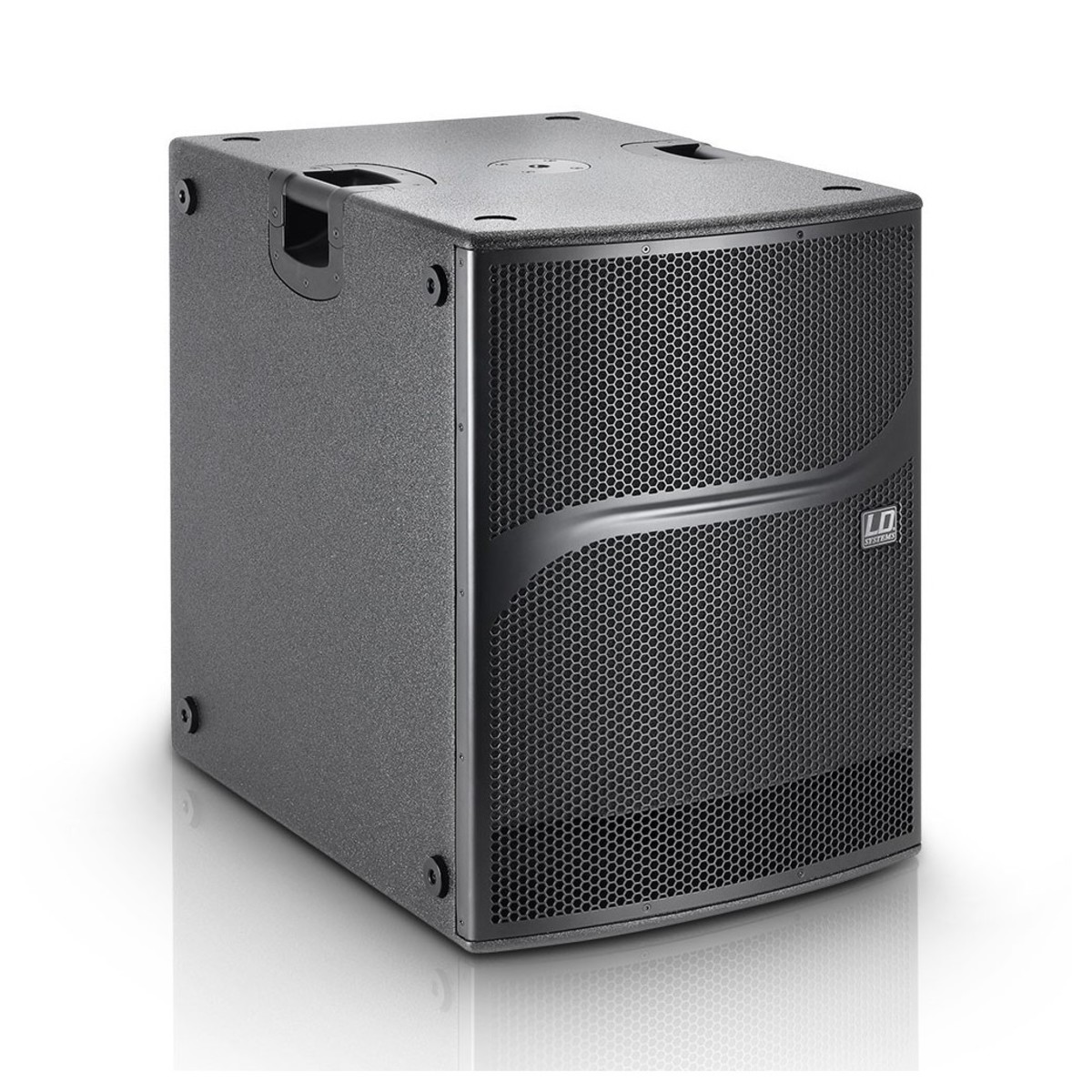

LD Systems DDQ 18'' Active Subwoofer with DSP

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Price:
$1,260.00
SKU:
121267
Brand:
Condition:
New
Availability:
Ready Stock
Shipping:
Calculated at checkout
Quantity:
Bookmark and Share

Product Description

Full Description

Powerful and Protective DSP

The DDQ 18'' Sub includes a 24-bit/48kHz custom Sharc DSP with volume control, delay, EQ crossover, phase alignment and comprehensive protection functions for precision adjustment and reliable operation. In addition, the DDQ features digital encoding, a switchable filter and ground lift switch. The LD DDQ 18'' also features an innovative, predictive limiter, with a 1 millisecond look ahead, delivering distortion free operation even at full volume, as peaks will be limited before they even reach the speaker drivers. Protection circuits are also included for excessive voltage, current and RMS power, providing excellent longevity to the DDQ Speakers from LD Systems.

About LD Systems

LD Systems have quickly become a leading pro audio brand in only a decade of business. They have an extensive range of state of the art products and continue to innovate, finding new ways to improve the possibilities of sonic performance and value. They provide an extensive range of accessories to protect and expand the applications of their products.

Features

  • Predictive look ahead limiter for distortion free operation
  • 24 bit, 48 kHz Sharc DSP for excellent, clear sound
  • Powerful 18'' Faital Pro Woofer
  • 2 x class D Hypex amplifiers offering 1400 Watts RMS
  • Maximum SPL of 134 dB
  • Robust 18 mm birch plywood enclosure

Specifications

  • Product Type: PA Subwoofer
  • Type: Actives
  • Design: DSP Controlled
  • Low/Mid Driver Dimensions: 18''
  • Woofer Size: 457.2 mm
  • Woofer Magnet: Neodymium
  • Woofer Brand: Faital Pro
  • Woofer Voice Coil: 4''
  • Woofer Voice Coil: 101.6 mm
  • Amplifier: Class D
  • RMS: 1400 (2 x 700) W
  • Frequency Response: 30 - 120 Hz
  • Max. SPL (Continuous): 126 dB
  • Max. SPL (Peak): 134 dB
  • Protection Circuits: DSP-Based "Look Ahead" Limiter, Over-Current, RMS Power Supply Limiter, RMS Speaker Limiter, Short Circuit
  • Controls: DSP Presets , DSP/ Gain Enable , Gain , Ground Lift , Power
  • Indicators: DSP/ Gain Disable , Operate , Peak Limit , Signal
  • Line Inputs: 2
  • Line Input Connectors: XLR
  • Line Outputs: 3 (2x Input Link, 1x Sat Out With 100Hz high-pass)
  • Line Output Connectors: XLR
  • Operating Voltage: Switching Power Supply
  • Operating Voltage: 180 - 264 V / 47 - 63 Hz
  • Cabinet Material: 18 mm Plywood
  • Cabinet Surface: Polyurea
  • Cabinet Construction: Vented
  • Width: 510 mm
  • Height: 700 mm
  • Depth: 725 mm
  • Weight: 44.5 kg
