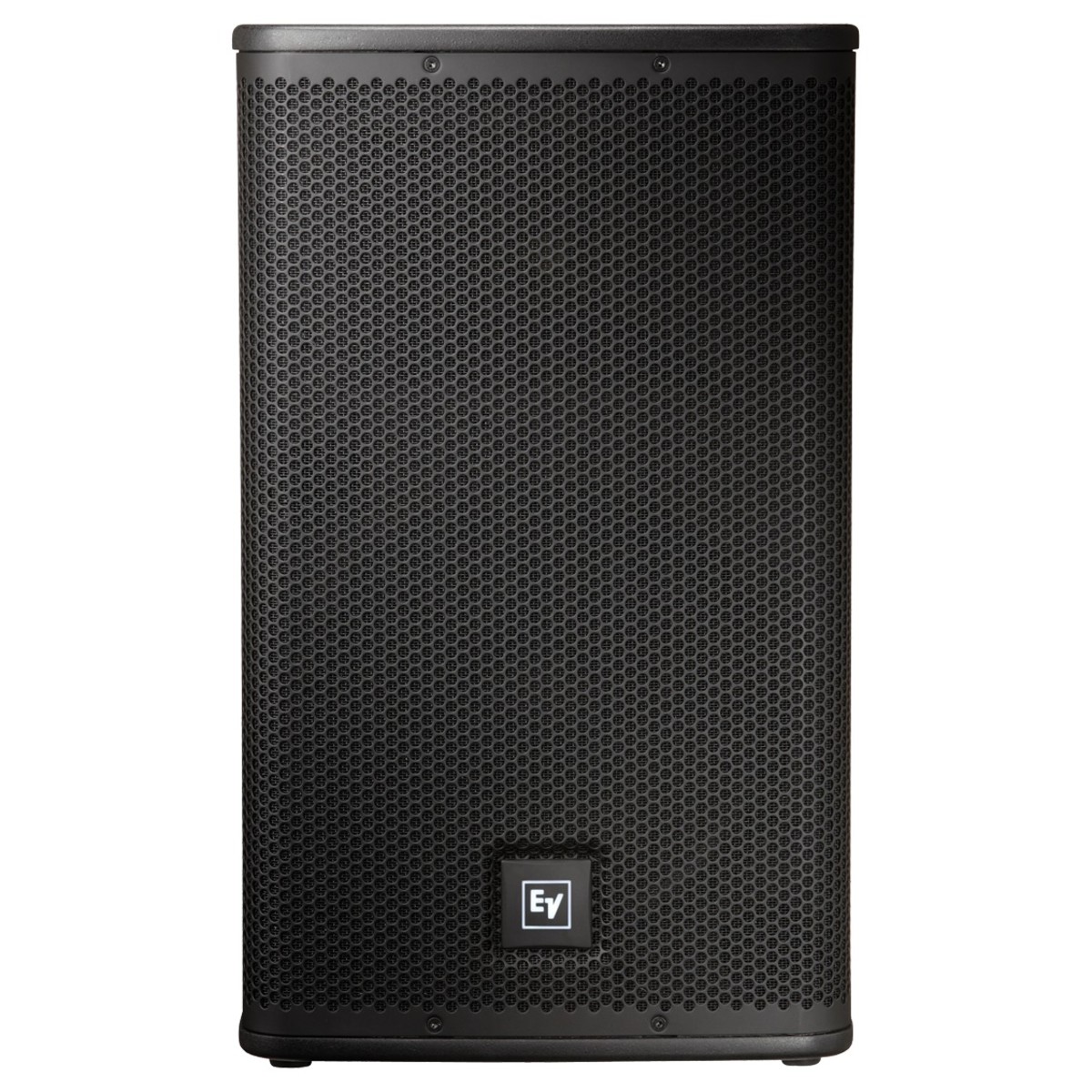

Electro-Voice ELX112P 12" Live X Two-way Powered Loudspeaker

  • Image 1
  • Image 2
  • Image 3
  • Image 4
Ready Stock
Calculated at checkout
Bookmark and Share

Product Description

Full Description

Built for excellence

Every detail matters. That's why Electro-Voice go the extra mile. ELX112P transducers have been designed for clear audio, even at high SPLs. The high-output EVS-12K reproduces low frequencies with clarity and depth. Combined with the crystal-clear transparency of the 1.5'' tweeter, you get phenomenal response across an extended frequency range.

Setting up made easy

Every ELX112P loudspeaker is built for exceptional flexibility and ease-of-use. Position your loudspeaker with precision thanks to a versatile enclosure design. Whether you need a satellite speaker or floor monitor, the ELX112P is up to the challenge. And when it comes to transportation and manoeuvrability, the lightweight plywood cabinet is easy to carry thanks to ergonomic handles.

It's a tough world out there

But don't worry. ELX112P loudspeakers have been designed with that in mind. Electro-Voice have ensured that this series is more than capable of withstanding the rigours of the road. A robust cabinet and premium components provide the reliability you need, both on and off the stage. And with internal bracing, you’ll get minimised resonance and maximised strength.


  • Exceptional stage presence, perfect for sound reinforcement and stage monitoring
  • Enormous power with cool running 1000W output
  • Deep bass impact from a 12” woofer
  • Clear highs from a 1.5” titanium compression driver
  • Articulate sound across an extended frequency range (50Hz – 20kHz)
  • Excellent sound dispersion with 90-degree x 50-degree coverage-pattern waveguide
  • Self amplifying and biamped
  • Built in frequency management with a 24dB/crossover
  • Prevents damages at high volumes with internal transducer protection
  • Bypassable high-pass for external subwoofer
  • Full range of connectivity with XLR, TRS, and RCA connections
  • Highly versatile gain, mixing, and processing controls
  • Pre or post-mix parallel outputs
  • Clear sound at high volumes with 132 dB max SPL
  • Minimal resonance thanks to internal plywood bracing
  • Lightweight and robust 15mm plywood enclosure
  • Scratch and scuff resistant black textured finish


  • Freq. Response (-3 dB): 60 Hz - 18 kHz
  • Freq. Range (-10 dB): 50 Hz - 20 kHz
  • Max. Measured SPL: 132 dB
  • Coverage (Horiz. x Vert.): 90° x 50°
  • Power Rating: 1000W
  • LF Transducer: (1) EVS-12K, 305mm (12") Woofer
  • HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
  • Crossover Frequency: 1.7 kHz
  • Connectors: (2) XLR/TRS Combo Jacks, (1) Stereo RCA, (1) XLR Link Output
  • Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
  • Grille: 18GA Steel with Black Powdercoat
  • Dimensions (H x W x D): 607mm x 362mm x 340mm (23.89" x 14.25" x 13.41")
  • Weight: 16.8kg
